Epson LightScene Projectors
Transform spaces into stunning visuals and immersive environments with LightScene EV-110/115, an innovative projection signage solution from Epson. Designed to blend into any settings, from retail and hospitality to event spaces and showrooms, the projector’s sleek, stylistic design and limitless projection possibilities are set to elevate your customer experience.
LightScene Laser Spot Light Projectors
Epson EV-110
Spot Light Digital Display Laser Projector [White]

2,200 Lumens Brightness
$3,399 RRP Inc GST
Epson Product Code: V11HA22053
Epson Product Code: V11HA22053
PRODUCT NAME | Epson EV-110 | |
PRODUCT CODE | V11HA22053 | |
TECHNOLOGY | ||
---|---|---|
Projection System | Epson 3LCD, 3-chip technology | |
LCD Panel | 0.59-inch (D8, C2fine) | |
OPTICAL | ||
Zoom | 1 - 2.21 (Total) (Optical zoom: 1 - 1.58, Digital zoom: 1 - 1.4) |
|
Screen Size | 30" to 150" [0.88 to 4.51 m] (Zoom: Wide) 30" to 150" [1.41 to 7.16 m] (Zoom: Tele) |
|
Projection Distance | 60" screen 1.79 - 2.19 m | |
Throw Ratio | 1.38 (Zoom: Wide), 2.19 (Zoom: Tele) | |
Projection Lens F Number | 1.51-1.92 | |
Projection Lens Focal Length | 18.2 mm - 28.4 mm | |
Focus Method | Powered Focus | |
Offset | 10:0 | |
IMAGE | ||
Colour Light Output | 2,200 Lumens | |
White Light Output | 2,200 Lumens | |
Resolution | WXGA | |
Native Aspect Ratio | 16:10 | |
Contrast Ratio | 2,500,000:1 | |
Laser Hours | 20000 hours (Light Source mode: Normal) 20000 hours (Light Source mode: Quiet) 30000 hours (Light Source mode: Extended) |
|
Laser Type | Laser Diode | |
Keystone Correction | Vertical: -45 to +45 degrees Horizontal: -40 to +40 degrees |
|

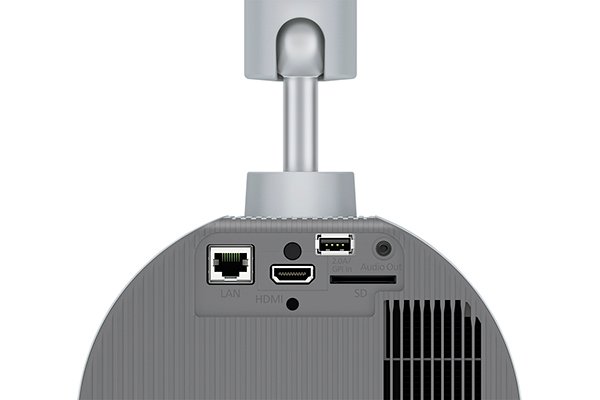

CONNECTIVITY | ||
Input: SD Card | 1 x SDHC, up to 32GB, more than Class 10 | |
Input: USB | 1 x USB type A - 2000 mA power supply only | |
Input: Digital | 1 x HDMI | |
Control | 1 x USB type A for GPI | |
Network O/I | 1 x RJ45 (100Mbs) | |
Wireless Connectivity | Included | |
Output: Audio | 1 x Stereo mini jack | |
Speaker connectivity | Bluetooth audio out | |
ADVANCED FEATURES | ||
Epson Projector management (Network & Control) | Yes | |
Crestron Integrated Partner | Yes | |
AV Mute | Yes | |
Edgeblend | Yes | |
Art Net | Yes | |
Content Playback | Yes | |
Content Creative | Yes | |
Instant Off | Yes | |
Direct Power On | Yes | |
Colour Modes | Dynamic Normal |
|
WHAT'S IN THE BOX | ||
LightScene EV-110 Laser Projector, Direct Mount Unit, Remote Control, 2 x AA Batteries, Cable Cover, 2 x HDMI Clamps, 3m Power Cable | ||
GENERAL | ||
Dimensions | Projection unit: φ175 x D265 Power supply unit: W459 x D110 x H65 (with Cable Cover) |
|
Weight | Approx 6.9 kg | |
Projector Warranty | 3 Years | |
Power Consumption: Laser on | Normal/Eco: 149/112W | |
Power Consumption: Standby | 2.0W | |
Noise Level | Normal/Eco: 34/22dB | |
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
- Integrated Lighting & Digital Display Laser Projector
- 2,200 Lumens Brightness
- Refer EV-115 for Black equivalent
- Breakthrough Laser Technology
- Create head-turning digital signage
- 1.58:1 Optical Zoom
- Blends in discreetly
- Spotlight Feature - Feature Products
- Powered Focus & Zoom
- Robust Management & Control Tools
- Customisable Effects & Features
- Easily Programmable
- Projector Content Manager
- Flexible Positioning
- Scheduled & Synchronised Playback
- Edge Blending
- Art Net
- SD Card Slot
- Expansive Connectivity
- HDMI Connectivity
- Wired & Wireless LAN
- Direct Ceiling Mount Included
- Optional Floor Stand [ELPMB55W]
- 6.9Kg
- 3 Year Warranty
- $3,399 RRP Inc GST
- Epson Product Code: V11HA22053
Epson EV-115
Spot Light Digital Display Laser Projector [Black]

2,200 Lumens Brightness
$3,399 RRP Inc GST
Epson Product Code: V11HA22153
Epson Product Code: V11HA22153
PRODUCT NAME | Epson EV-115 | |
PRODUCT CODE | V11HA22153 | |
TECHNOLOGY | ||
---|---|---|
Projection System | Epson 3LCD, 3-chip technology | |
LCD Panel | 0.59-inch (D8, C2fine) | |
OPTICAL | ||
Zoom | 1 - 2.21 (Total) (Optical zoom: 1 - 1.58, Digital zoom: 1 - 1.4) |
|
Screen Size | 30" to 150" [0.88 to 4.51 m] (Zoom: Wide) 30" to 150" [1.41 to 7.16 m] (Zoom: Tele) |
|
Projection Distance | 60" screen 1.79 - 2.19 m | |
Throw Ratio | 1.38 (Zoom: Wide), 2.19 (Zoom: Tele) | |
Projection Lens F Number | 1.51-1.92 | |
Projection Lens Focal Length | 18.2 mm - 28.4 mm | |
Focus Method | Powered Focus | |
Offset | 10:0 | |
IMAGE | ||
Colour Light Output | 2,200 Lumens | |
White Light Output | 2,200 Lumens | |
Resolution | WXGA | |
Native Aspect Ratio | 16:10 | |
Contrast Ratio | 2,500,000:1 | |
Laser Hours | 20000 hours (Light Source mode: Normal) 20000 hours (Light Source mode: Quiet) 30000 hours (Light Source mode: Extended) |
|
Laser Type | Laser Diode | |
Keystone Correction | Vertical: -45 to +45 degrees Horizontal: -40 to +40 degrees |
|

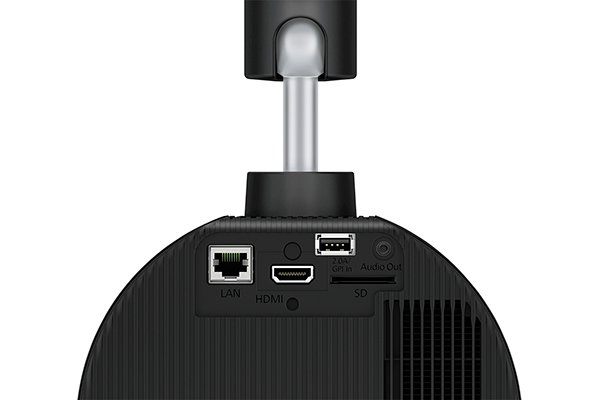

CONNECTIVITY | ||
Input: SD Card | 1 x SDHC, up to 32GB, more than Class 10 | |
Input: USB | 1 x USB type A - 2000 mA power supply only | |
Input: Digital | 1 x HDMI | |
Control | 1 x USB type A for GPI | |
Network O/I | 1 x RJ45 (100Mbs) | |
Wireless Connectivity | Included | |
Output: Audio | 1 x Stereo mini jack | |
Speaker connectivity | Bluetooth audio out | |
ADVANCED FEATURES | ||
Epson Projector management (Network & Control) | Yes | |
Crestron Integrated Partner | Yes | |
AV Mute | Yes | |
Edgeblend | Yes | |
Art Net | Yes | |
Content Playback | Yes | |
Content Creative | Yes | |
Instant Off | Yes | |
Direct Power On | Yes | |
Colour Modes | Dynamic Normal |
|
WHAT'S IN THE BOX | ||
LightScene EV-115 Laser Projector, Direct Mount Unit, Remote Control, 2 x AA Batteries, Cable Cover, 2 x HDMI Clamps, 3m Power Cable | ||
GENERAL | ||
Dimensions | Projection unit: φ175 x D265 Power supply unit: W459 x D110 x H65 (with Cable Cover) |
|
Weight | Approx 6.9 kg | |
Projector Warranty | 3 Years | |
Power Consumption: Laser on | Normal/Eco: 149/112W | |
Power Consumption: Standby | 2.0W | |
Noise Level | Normal/Eco: 34/22dB | |
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | ||
- Integrated Lighting & Digital Display Laser Projector
- 2,200 Lumens Brightness
- Refer EV-110 for White equivalent
- Breakthrough Laser Technology
- Create head-turning digital signage
- 1.58:1 Optical Zoom
- Blends in discreetly
- Spotlight Feature - Feature Products
- Powered Focus & Zoom
- Robust Management & Control Tools
- Customisable Effects & Features
- Easily Programmable
- Projector Content Manager
- Flexible Positioning
- Scheduled & Synchronised Playback
- Edge Blending
- Art Net
- SD Card Slot
- Expansive Connectivity
- HDMI Connectivity
- Wired & Wireless LAN
- Direct Ceiling Mount Included
- Optional Floor Stand [ELPMB55B]
- 6.9Kg
- 3 Year Warranty
- $3,399 RRP Inc GST
- Epson Product Code: V11HA22153
Ultra Short Throw Digital Signage Projectors
Epson EB-805F
[1080p] UST Digital Signage Laser Projector

5,000 Lumens
1080p Resolution [1920x1080]
1080p Resolution [1920x1080]
$4,499 RRP Inc GST
Epson Product Code: V11H923653
Epson Product Code: V11H923653
PRODUCT NAME | EB-805F | |
PRODUCT CODE | V11H923653 | |
TECHNOLOGY | ||
---|---|---|
Projection Technology | Epson 3LCD, 3-chip technology | |
Light Source | Laser Diode | |
Projection System | RGB liquid crystal shutter projection system | |
LCD Panel | 0.62-inch (C2fine) | |
OPTICAL | ||
Zoom | 1 – 1.35 (Digital) | |
Screen Size | 65" to 130" [39.2 cm to 80.3 cm] @16:9 Wide 61" to 120" [39.5 cm to 79.6 cm] @16:6 Wide 48" to 96" [39.2 cm to 80.3 cm] @16:9 Tele |
|
Projection Distance | 80" screen at 48.7cm | |
Throw Ratio | 0.27 (Zoom:Wide) 0.37 (Zoom:Tele) |
|
Projection Lens F Number | 1.5 | |
Projection Lens Focal Length | 3.9 mm | |
Focus Method | Manual | |
Lens Shift | N / A | |
IMAGE | ||
Colour Light Output | 5,000 lumens | |
White Light Output | 5,000 lumens | |
Resolution | FHD | |
Native Aspect Ratio | 16:9 | |
Contrast Ratio | Over 2,500,000:1 | |
Light Source | Laser | |
Colour Reproduction | Up to 1.07 billion colours | |
Colour Processing | 10 bit | |
Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
|
Quick Corner | Yes | |
Edgeblend | Yes | |
Content Playback | Yes | |
Refresh Rate | 192 Hz / 240 Hz | |
*Pixel shifting technology achieves Full HD resolution on screen | ||

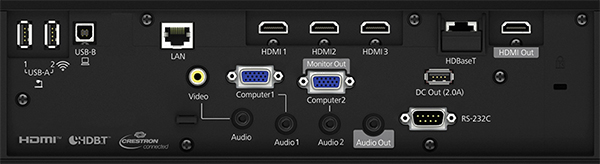

CONNECTIVITY | ||
Video I/O - Input | 2 x Monitor in (RGB D-sub 15 pin), 1 x RCA in (composite) | |
Video I/O - Output | 1 x Monitor out (RGB D-sub 15 pin) | |
Digital Input | (HDCP2.3), 1 x HDBaseT (RJ45) | |
Digital Output | 1 x HDMI | |
Audio I/O - Input | 3 x Audio In (Stereo Mini) | |
Audio I/O - Output | 1 x Audio out (Stereo Mini) | |
Control I/O | RS-232C (D-sub 9 pin) | |
USB I/O | 2 x Type A (for USB Memory, Firmware update, copy OSD Settings) 1 x Type A (for Power supply only 5V) 1 x Type B (Firmware update, Copy OSD Settings) |
|
Network I/O: | 1 x RJ45 | |
Wireless Connectivity | Optional (ELPAP11) | |
Speaker Output | 16W | |
ADVANCED FEATURES | ||
Epson Projection Management Software | Yes | |
Epson Content Management Software | Yes | |
Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol | |
Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
|
Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
|
Wireless LAN Security | WPA2/WPA3-PSK (Personal), WPA2/WPA3-EAP (Enterprise) |
|
Instant Off | Yes | |
Direct Power On | Yes | |
Auto Power On | Yes | |
Security | Kensington® lock provision | |
Colour Modes | Dynamic Presentation Cinema sRGB BlackBoard DICOM SIM Multi-Projection |
|
Wall Mount | Optional (ELPMB62) | |
GENERAL | ||
Dimensions D x W x H (excluding feet) | 375 x 458 x 209.5 mm | |
Weight | 9.4 kg | |
Projector Warranty | 3 Years | |
Power Consumption: Projector on | 366 W | |
Power Consumption: Standby | 2 W | |
Noise Level (Normal / Eco) | 36 / 27 dB | |
WHAT'S IN THE BOX | ||
Main Unit | EB-805F Projector | |
Power Cable | 1.8 m | |
Lens Cap | Yes | |
Remote Control | Yes | |
Battery for Remote Control | 2 x AA | |
Cable Cover | Yes | |
PRODUCT OPTIONS | ||
V13H134A56 | Air Filter – ELPAF56 | |
V12HA06A06 | Projector wall mount – ELPMB62 | |
V12H005A01 | Wireless LAN Unit ELPAP11 | |
V12H547053 | HDBaseT Transmitter - ELPHD01 | |
2YWEB805F | Extended Warranty (additional 2 years warranty) |
|
2YWEB805FRE | Rapid Exchange Service Pack (additional 2 years warranty + Express within 1-3 days swap) |
- Laser Ultra Short Throw Laser Digital Signage Projector
- 5,000 Lumens Colour & White Brightness
- 1080p Resolution [1920x1080]
- Image size up to 130" (16:9)
- 80" Image Size @ 49cm
- 1.35:1 Digital Zoom
- 16:9 & 16:6 Aspect ratios
- Zero Offset Lens
- Network: Monitor / Control / Projection
- HDMI connectivity x 3
- Video Out (HDMI & VGA)
- Audio Out (Stereo mini)
- RS232C Control
- RJ45 LAN
- Optional Wireless [ELPAP11]
- Integrated 16W Speaker
- Edge Blending
- Content Playback
- Quick Corner
- Projection Management Software
- DIY Content Creation (Templates, Effects, etc.)
- Optional Wall Mount [ELPMB62]
- 6.4 Kg
- 3 Years Warranty (4 Years Under NSW Multimedia C278)
- $4,499 RRP Inc GST
- Epson Product Code: V11H923653
