Epson EB-L630SU Epson EB-L635SU Epson EB-L570U Epson EB-L630U Epson EB-L730U Epson EB-L735U Epson EB-L770U


Epson EB-L520U/ L630U/ L630SU/ L730U WUXGA 3LCD Business Laser Projectors

Epson’s versatile and compact EB-L730U series projectors are loaded with endless possibilities to project vivid and sharp images of up to 7,000 lumens* to your audience. Features such as center-lens placement, 360° installation, and a wide range of connectivity translates to a flexible and performance-focused projection solution to suit all your needs.

*For EB-L730U only

L-Series Laser Projectors: Short Throw - Installation Fixed Lens

Epson EB-L630SU

[WUXGA] Laser Light Source Short Throw Installation Projector [White]

6,000 Lumens
WUXGA Resolution [1920x1200]
$5,999 RRP Inc GST [Includes Lens]
Epson Product Code: V11HA29053
Close Tab
PRODUCT NAME Epson EB-L630SU
PRODUCT CODE V11HA29053
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA
Colour Light Output 6,000 Lumens
White Light Output 6,000 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 211 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Vertical: ±50°
Horizontal ±20°
OPTICAL
Zoom 1 - 1.35 (Digital)
Screen Size (Standard Lens) 50" to 200"
Projection Distance (Standard Lens) 80" screen 1.38 m
Throw Ratio 0.80 (Zoom:Wide)
1.07 (Zoom:Tele)
Projection Lens F Number 1.7
Projection Lens Focal Length 11.76 mm
Focus Method Manual

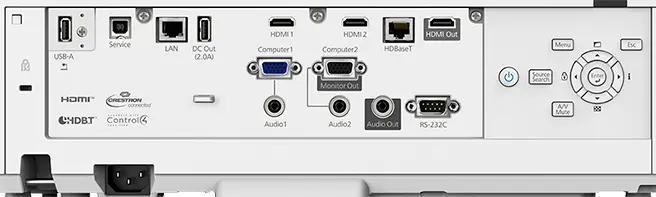

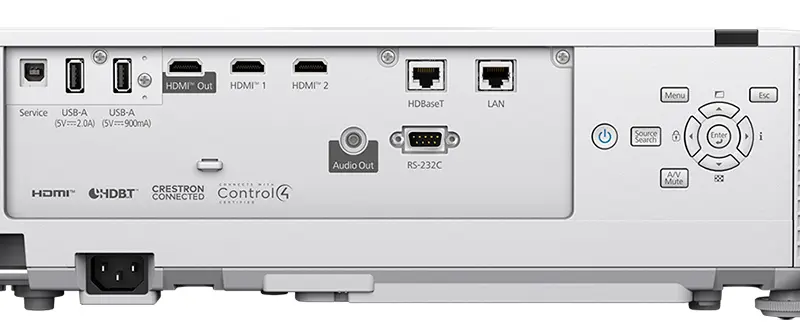

CONNECTIVITY
Input: Computer 2 x D-sub 15-Pin (RGB)
1 x USB 2.0 type B
Input: Digital 2 x HDMI, 1 x HDBaseT
Input: Audio 2 x Stereo mini
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB Type A
(for optional ELPAP11*)
HDBaseT Yes
Wireless Connectivity Included
Output: Video 1 x D-sub 15-Pin (RGB)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
Built-in Speaker 10W
EPSON Projector Management
(Network & Control) 		Yes
EPSON iProjection
(Multi-PC Projection) 		Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Miracast Yes
4K Enhancement –
Lens Position Memory –
Split Screen Yes
Edge Blending –
Curved Screen Projection –
Frame Interpolation –
Super Resolution Yes
Detail Enhancement Yes
360 Degress Projection Yes
Content Playback Yes
Instant Off Yes
Direct Power On Yes
Security Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic
Presentation
Cinema
sRGB
DICOM SIM
Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.4 Kg
Power Consumption: LD On 345 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 38 / 27 dB
*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (simple AP mode and manual mode)

Close Tab
  • 6,000 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • Refer EB-L615U for Black equivalent
  • 16:10 Native Aspect Ratio
  • 1.35:1 Digital Zoom
  • 50" to 200" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • Built in Wi-Fi
  • Miracast (Screen Sharing)
  • Epson iProjection™
  • Wireless LAN Enterprise Security
  • USB content direct playback
  • DICOM Simulation Mode
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Digital Out (HDMI)
  • Video Out (VGA)
  • Audio Out (Stereo mini)
  • 8.4 Kg
  • 5 Year Warranty

  • $5,999 RRP Inc GST [Includes Lens]
  • Epson Product Code: V11HA30053
Close Tab

Close Tab

Epson EB-L635SU

[WUXGA] Laser Light Source Short Throw Installation Projector [Black]

6,000 Lumens
WUXGA Resolution [1920x1200]
$5,999 RRP Inc GST [Includes Lens]
Epson Product Code: V11HA29153
Close Tab
PRODUCT NAME Epson EB-L635SU
PRODUCT CODE V11HA29153
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA
Colour Light Output 6,000 Lumens
White Light Output 6,000 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 211 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Vertical: ±50°
Horizontal ±20°
OPTICAL
Zoom 1 - 1.35 (Digital)
Screen Size (Standard Lens) 50" to 200"
Projection Distance (Standard Lens) 80" screen 1.38 m
Throw Ratio 0.80 (Zoom:Wide)
1.07 (Zoom:Tele)
Projection Lens F Number 1.7
Projection Lens Focal Length 11.76 mm
Focus Method Manual

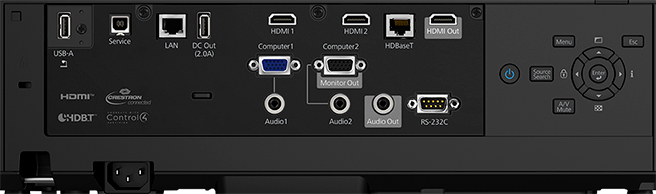

CONNECTIVITY
Input: Computer 2 x D-sub 15-Pin (RGB)
1 x USB 2.0 type B
Input: Digital 2 x HDMI, 1 x HDBaseT
Input: Audio 2 x Stereo mini
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB Type A
(for optional ELPAP11*)
HDBaseT Yes
Wireless Connectivity Included
Output: Video 1 x D-sub 15-Pin (RGB)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
Built-in Speaker 10W
EPSON Projector Management
(Network & Control) 		Yes
EPSON iProjection
(Multi-PC Projection) 		Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Miracast Yes
4K Enhancement –
Lens Position Memory –
Split Screen Yes
Edge Blending –
Curved Screen Projection –
Frame Interpolation –
Super Resolution Yes
Detail Enhancement Yes
360 Degress Projection Yes
Content Playback Yes
Instant Off Yes
Direct Power On Yes
Security Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic
Presentation
Cinema
sRGB
DICOM SIM
Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.4 Kg
Power Consumption: LD On 345 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 38 / 27 dB
*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (simple AP mode and manual mode)

Close Tab
  • 6,000 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • Refer EB-L630SU for White equivalent
  • 16:10 Native Aspect Ratio
  • 1.35:1 Digital Zoom
  • 50" to 200" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • Built in Wi-Fi
  • Miracast (Screen Sharing)
  • Epson iProjection™
  • Wireless LAN Enterprise Security
  • USB content direct playback
  • DICOM Simulation Mode
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Digital Out (HDMI)
  • Video Out (VGA)
  • Audio Out (Stereo mini)
  • 8.4 Kg
  • 5 Year Warranty

  • $5,999 RRP Inc GST [Includes Lens]
  • Epson Product Code: V11HA29153
Close Tab

Close Tab

L-Series Laser Projectors: Long Throw - Installation Fixed Lens

Epson EB-L570U

[WUXGA] Laser Light Source Installation Projector [White]

5,200 Lumens
WUXGA Resolution [1920x1200]
4k enhancement*
*4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD (1920x1080) resolution. Resolution is Full HD in 3D Mode.
$4,799 RRP Inc GST [Includes Lens]
Epson Product Code: V11HA98053BU
Close Tab
TECHNOLOGY
PRODUCT NAME EB-L570U
PRODUCT CODE V11HA98053BU
Projection system 3LCD
LCD panel 0.67-inch
Light source Laser diode
Resolution WUXGA
Colour light output 5,200 lumens
White light output 5,200 lumens
Native aspect ratio 16:10
Contrast ratio 2,500,000:1
LD input power 185 W
Keystone correction (Standard lens) Vertical: ±30°
Horizontal: ±30°
Lens shift (Standard lens) Vertical: ±50%
Horizontal: ±20%
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen size 50" to 500"
Projection distance 80" screen 2.33 m - 3.78 m
Throw ratio 1.35 (Zoom: Wide)
2.20 (Zoom: Tele)
Projection lens F number 1.5 - 1.7
Projection lens focal length 20 mm - 31.8 mm
Focus method Manual
CONNECTIVITY
Input: Digital 2 x HDMI, 1 x HDBaseT
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB A (for optional ELPAP11)
USB: I/O 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only)
1 x USB Type B (for Firmware update, Copy OSD Settings)
HDBaseT Yes
Wireless connectivity Optional (ELPAP11)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
4k enhancement Yes
Built-in speaker 10 W
External camera support (ELPEC01) Yes
Epson Projector Management
(Network & Control) 		Yes
Epson iProjection
(Multi-PC Projection)		 Yes
Epson Professional Tool Yes
Epson Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Split screen Yes
Super resolution Yes
Detail enhancement Yes
Scene adaptive gamma Yes
360° projection Yes
Content playback Yes
Edge blending Yes
Curved surface correction Yes
GENERAL
WHAT'S IN THE BOX EB-L570U projector, 3 m power cable, remote control, 2 x AA batteries, cable cover, User’s Guide
Dimensions D x W x H (including feet) 339 x 440 x 136 mm
Weight 8.3 kg
Power consumption: LD On 312 W
Power consumption: Standby 2 W
Noise level (Normal/Eco) 31 / 23 dB

Close Tab
  • 5,200 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • 4K enhancement with pixel shift
  • 16:10 Native Aspect Ratio
  • 1.6:1 Optical Zoom
  • 50" to 500" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • Epson iProjection™
  • Wireless LAN Enterprise Security
  • USB content direct playback
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Video Out (HDMI)
  • Audio Out (Stereo mini)
  • 8.3 Kg
  • 5 Year Warranty

  • $4,799 RRP Inc GST [Includes Lens]
  • Epson Product Code: V11HA98053BU
Close Tab

Close Tab

Epson EB-L630U

[WUXGA] Laser Light Source Installation Projector [White]

6,200 Lumens
WUXGA Resolution [1920x1200]
$4,999 RRP Inc GST [Includes Lens]
Epson Product Code: V11HA26053
Close Tab
PRODUCT NAME Epson EB-L630U
PRODUCT CODE V11HA26053
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA
Colour Light Output 6,200 Lumens
White Light Output 6,200 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 219 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Vertical: ±50°
Horizontal ±20°
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 500"
Projection Distance (Standard Lens) 80" screen 2.33 m - 3.78 m
Throw Ratio 1.35 (Zoom:Wide)
2.20 (Zoom:Tele)
Projection Lens F Number 1.5 - 1.7
Projection Lens Focal Length 20.0mm - 31.8mm
Focus Method Manual
CONNECTIVITY
Input: Computer 2 x D-sub 15-Pin (RGB)
1 x USB 2.0 type B
Input: Digital 2 x HDMI, 1 x HDBaseT
Input: Audio 2 x Stereo mini
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB Type A
(for optional ELPAP11*)
HDBaseT Yes
Wireless Connectivity Included
Output: Video 1 x D-sub 15-Pin (RGB)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
Built-in Speaker 10W
EPSON Projector Management
(Network & Control) 		Yes
EPSON iProjection
(Multi-PC Projection) 		Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Miracast Yes
4K Enhancement –
Lens Position Memory –
Split Screen Yes
Edge Blending –
Curved Screen Projection –
Frame Interpolation –
Super Resolution Yes
Detail Enhancement Yes
360 Degress Projection Yes
Content Playback Yes
Instant Off Yes
Direct Power On Yes
Security Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic
Presentation
Cinema
sRGB
DICOM SIM
Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.4 Kg
Power Consumption: LD On 345 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 38 / 27 dB
*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (simple AP mode and manual mode)

Close Tab
  • 6,200 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • 16:10 Native Aspect Ratio
  • 1.6:1 Optical Zoom
  • 50" to 500" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • Built in Wi-Fi
  • Miracast (Screen Sharing)
  • Epson iProjection™
  • Wireless LAN Enterprise Security
  • USB content direct playback
  • DICOM Simulation Mode
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Digital Out (HDMI)
  • Video Out (VGA)
  • Audio Out (Stereo mini)
  • 8.4 Kg
  • 5 Year Warranty

  • $4,999 RRP Inc GST [Includes Lens]
  • Epson Product Code: V11HA26053
Close Tab

Close Tab

Epson EB-L730U

[WUXGA] Laser Light Source Installation Projector [White]

7,000 Lumens
WUXGA Resolution [1920x1200]
$5,599 RRP Inc GST [Includes Lens]
Epson Product Code: V11HA25053
Close Tab
PRODUCT NAME Epson EB-L730U
PRODUCT CODE V11HA25053
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA
Colour Light Output 7,000 Lumens
White Light Output 7,000 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 236 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Vertical: ±50°
Horizontal ±20°
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 500"
Projection Distance (Standard Lens) 80" screen 2.33 m - 3.78 m
Throw Ratio 1.35 (Zoom:Wide)
2.20 (Zoom:Tele)
Projection Lens F Number 1.5 - 1.7
Projection Lens Focal Length 20.0mm - 31.8mm
Focus Method Manual
CONNECTIVITY
Input: Computer 2 x D-sub 15-Pin (RGB)
1 x USB 2.0 type B
Input: Digital 2 x HDMI, 1 x HDBaseT
Input: Audio 2 x Stereo mini
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB Type A
(for optional ELPAP11*)
HDBaseT Yes
Wireless Connectivity Included
Output: Video 1 x D-sub 15-Pin (RGB)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
Built-in Speaker 10W
EPSON Projector Management
(Network & Control) 		Yes
EPSON iProjection
(Multi-PC Projection) 		Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Miracast Yes
4K Enhancement –
Lens Position Memory –
Split Screen Yes
Edge Blending –
Curved Screen Projection –
Frame Interpolation –
Super Resolution Yes
Detail Enhancement Yes
360 Degress Projection Yes
Content Playback Yes
Instant Off Yes
Direct Power On Yes
Security Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic
Presentation
Cinema
sRGB
DICOM SIM
Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.4 Kg
Power Consumption: LD On 345 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 38 / 27 dB
*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (simple AP mode and manual mode)

Close Tab
  • 7,000 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • Refer EB-L735U for Black equivalent
  • 16:10 Native Aspect Ratio
  • 1.6:1 Optical Zoom
  • 50" to 500" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • Built in Wi-Fi
  • Miracast (Screen Sharing)
  • Epson iProjection™
  • Wireless LAN Enterprise Security
  • USB content direct playback
  • DICOM Simulation Mode
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Digital Out (HDMI)
  • Video Out (VGA)
  • Audio Out (Stereo mini)
  • 8.4 Kg
  • 5 Year Warranty

  • $5,599 RRP Inc GST [Includes Lens]
  • Epson Product Code: V11HA25053
Close Tab

Close Tab

Epson EB-L735U

[WUXGA] Laser Light Source Installation Projector [Black]

7,000 Lumens
WUXGA Resolution [1920x1200]
$5,599 RRP Inc GST [Includes Lens]
Epson Product Code: V11HA25153
Close Tab
PRODUCT NAME Epson EB-L735U
PRODUCT CODE V11HA25153
TECHNOLOGY
Projection System 3LCD
LCD Panel 0.67-inch
Light Source Laser Diode
Resolution WUXGA
Colour Light Output 7,000 Lumens
White Light Output 7,000 Lumens
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
LD Input Power 236 W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Vertical: ±50°
Horizontal ±20°
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 500"
Projection Distance (Standard Lens) 80" screen 2.33 m - 3.78 m
Throw Ratio 1.35 (Zoom:Wide)
2.20 (Zoom:Tele)
Projection Lens F Number 1.5 - 1.7
Projection Lens Focal Length 20.0mm - 31.8mm
Focus Method Manual
CONNECTIVITY
Input: Computer 2 x D-sub 15-Pin (RGB)
1 x USB 2.0 type B
Input: Digital 2 x HDMI, 1 x HDBaseT
Input: Audio 2 x Stereo mini
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB Type A
(for optional ELPAP11*)
HDBaseT Yes
Wireless Connectivity Included
Output: Video 1 x D-sub 15-Pin (RGB)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
Built-in Speaker 10W
EPSON Projector Management
(Network & Control) 		Yes
EPSON iProjection
(Multi-PC Projection) 		Yes
EPSON Professional Tool Yes
EPSON Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Miracast Yes
4K Enhancement –
Lens Position Memory –
Split Screen Yes
Edge Blending –
Curved Screen Projection –
Frame Interpolation –
Super Resolution Yes
Detail Enhancement Yes
360 Degress Projection Yes
Content Playback Yes
Instant Off Yes
Direct Power On Yes
Security Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic
Presentation
Cinema
sRGB
DICOM SIM
Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet) 339 x 440 x 136 mm
Weight 8.4 Kg
Power Consumption: LD On 345 W
Power Consumption: Standby 2.0 W
Noise Level (Normal/Eco) 38 / 27 dB
*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (simple AP mode and manual mode)

Close Tab
  • 7,000 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • Refer EB-L730U for White equivalent
  • 16:10 Native Aspect Ratio
  • 1.6:1 Optical Zoom
  • 50" to 500" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • Built in Wi-Fi
  • Miracast (Screen Sharing)
  • Epson iProjection™
  • Wireless LAN Enterprise Security
  • USB content direct playback
  • DICOM Simulation Mode
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Digital Out (HDMI)
  • Video Out (VGA)
  • Audio Out (Stereo mini)
  • 8.4 Kg
  • 5 Year Warranty

  • $5,599 RRP Inc GST [Includes Lens]
  • Epson Product Code: V11HA25153
Close Tab

Close Tab

Epson EB-L770U

[WUXGA] Laser Light Source Installation Projector [White]

WUXGA 7000 Lumens Laser LT Large Venue
4k Enhancement
*4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD (1920x1080) resolution. Resolution is Full HD in 3D Mode.
$6,249 RRP Inc GST [Excludes Optional Lens]
Epson Product Code: V11HA96053BU
TECHNOLOGY
PRODUCT NAME EB-L770U
PRODUCT CODE V11HA96053BU
Projection system 3LCD
LCD panel 0.67-inch
Light source Laser diode
Resolution WUXGA
Colour light output 7,000 lumens
White light output 7,000 lumens
Native aspect ratio 16:10
Contrast ratio 2,500,000:1
LD input power 233.6 W
Keystone correction (Standard lens) Vertical: ±30°
Horizontal: ±30°
Lens shift (Standard lens) Vertical: ±50%
Horizontal: ±20%
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen size 50" to 500"
Projection distance 80" screen 2.33 m - 3.78 m
Throw ratio 1.35 (Zoom: Wide)
2.20 (Zoom: Tele)
Projection lens F number 1.5 - 1.7
Projection lens focal length 20 mm - 31.8 mm
Focus method Manual
CONNECTIVITY
Input: Digital 2 x HDMI, 1 x HDBaseT
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB A (for optional ELPAP11)
USB: I/O 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only)
1 x USB Type B (for Firmware update, Copy OSD Settings)
HDBaseT Yes
Wireless connectivity Optional (ELPAP11)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
4k enhancement Yes
Built-in speaker 10 W
External camera support (ELPEC01) Yes
Epson Projector Management
(Network & Control)		 Yes
Epson iProjection
(Multi-PC Projection)		 Yes
Epson Professional Tool Yes
Epson Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Split screen Yes
Super resolution Yes
Detail enhancement Yes
Scene adaptive gamma Yes
360° projection Yes
Content playback Yes
Edge blending Yes
Curved surface correction Yes
GENERAL
WHAT'S IN THE BOX EB-L770U projector, 3 m power cable, remote control, 2 x AA batteries, cable cover, User’s Guide
Dimensions D x W x H (including feet) 339 x 440 x 136 mm
Weight 8.5 kg
Power consumption: LD On 366 W
Power consumption: Standby 2 W
Noise level (Normal/Eco) 38 / 27 dB

  • 7,000 Lumens Brightness
  • Fixed Lens
  • WUXGA Resolution [1920x1200]
  • 16:10 Native Aspect Ratio
  • 1.6:1 Optical Zoom
  • 50" to 500" Screen Size
  • Horizontal & Vertical Lens shift
  • Manual Lens Shift V±50%, H±20%
  • 4K Enhancement
  • Epson iProjection™
  • USB content direct playback
  • Epson Content Management Software
  • Integrated 10W Speaker
  • 360° Installation
  • 2 x HDMI Connectivity
  • HDBaseT
  • RS232C Control
  • RJ45 LAN
  • Digital Out (HDMI)
  • Audio Out (Stereo mini)
  • 8.5 Kg
  • 5 Year Warranty

  • $6,249 RRP Inc GST [Excludes Optional Lens]
  • Epson Product Code: V11HA96053BU
  • Call 1800 463 279 or email sales@Keepad.com for market leading pricing
