Make any normal whiteboard or wall interactive with Interactive Projectors.
An ultra-short-throw design eliminates many of the common problems of panels, such as shadowing and eye glare. With an incredibly efficient throw ratio allowing you to project extra-large interactive images up to 100" in 16:9.
Presenters are able to deliver rich multimedia content without the distraction of glare in their eyes, or shadows on the board disrupting the vision of their audience.
Ultra-Short Throw Projectors: Interactive
(up to 5,000 lumens of brightness)
Epson EB-760Wi
[WXGA] USTi Laser Interactive Projector
4,100 Lumens
WXGA Resolution [1280x800]
WXGA Resolution [1280x800]
$3,999 RRP Inc GST
Epson Product Code: V11HA80053
Epson Product Code: V11HA80053
| PRODUCT NAME | EB-760Wi | |
| PRODUCT CODE | V11HA80053 | |
| TECHNOLOGY | ||
|---|---|---|
| Projection System | RGB liquid crystal shutter projection system | |
| LCD Panel | 0.59-inch (C2fine) | |
| Resolution | WXGA | |
| OPTICAL | ||
| Zoom | 1 – 1.35 (Digital) | |
| Screen Size | 65" to 150" [33.7 cm to 92.8 cm] @ 16:10 | |
| Projection Distance | 74.3" screen 43.3 cm | |
| Throw Ratio | 0.27 (Zoom:Wide) 0.37 (Zoom:Tele) |
|
| Projection Lens F Number | 1.6 | |
| Projection Lens Focal Length | 3.7 mm | |
| Focus Method | Manual | |
| Offset | 5.8 : -1 | |
| IMAGE | ||
| Colour Light Output | 4,100 lumens | |
| White Light Output | 4,100 lumens | |
| Native Aspect Ratio | 16:10 | |
| Contrast Ratio | Over 2,500,000:1 | |
| Light Source | Laser diode | |
| Colour Reproduction | Up to 1.07 billion colours | |
| Colour Processing | 10 bit | |
| Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
|
| Quick Corner | Yes | |
| Auto Setup | Yes | |
| Refresh Rate | 100 Hz / 120 Hz | |
| CONNECTIVITY | ||

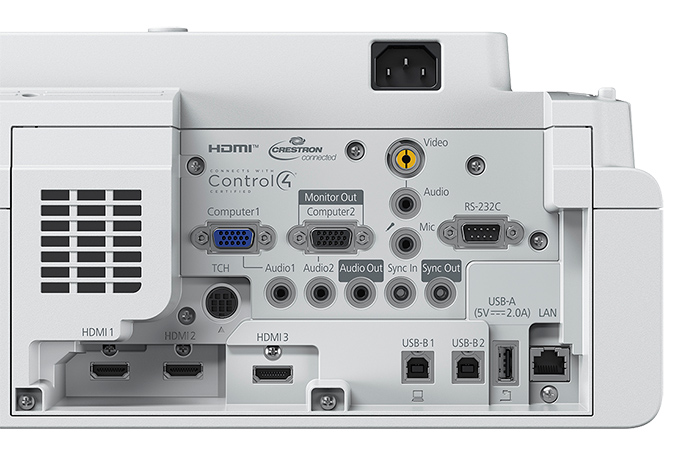

| Video I/O - Input | 2x RGB D-sub 15pin 1x RCA Composite |
|
| Video I/O - Output | 1x RGB D-sub 15pin (shared) | |
| Digital Input | 3x HDMI | |
| Digital Output | N/A | |
| Audio I/O - Input | 3x Stereo mini 1 x Mic-In Stereo Mini |
|
| Audio I/O - Output | 1x Stereo mini | |
| Control I/O | 1 x RS232C (D-sub 9 pin) Interactive sync Stereo Mini - 1 x In, 1 x Out Touch Unit Control - Mini DIN 8pin |
|
| USB I/O | 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1) 2 x Type B (Firmware update, Copy OSD Settings, USB display) |
|
| Network I/O: | 1 x RJ45 (100Mbps) Wired LAN | |
| Touch Interactive | Min DIN 8pin | |
| Wireless Connectivity | Built-in Miracast and Built-in Wireless Optional Wireless LAN unit (ELPAP11)* *With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode). |
|
| Speaker Output | 1 x 16 W Stereo | |
| ADVANCED FEATURES | ||
| Epson Projection Management Software | Yes | |
| Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol | |
| Easy Interactive Tools | Ver 5.00 (Windows) Ver 5.01 (Mac OS) |
|
| PC Interactive Tool | Multiple pen: Yes (up to 2) with Easy Interactive Tools Finger touch support: Optional (up to 6 fingers) |
|
| PC Free Annotation Tool | Multiple pen support: Yes (up to 2) Finger touch support: Optional (Up to 6) Whiteboard function (Pen up to 2, optional: up to 6) Projector operation |
|
| Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
|
| Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
|
| Wireless LAN Security | WPA2/WPA3-PSK (Personal), WPA2/WPA3-EAP (Enterprise) |
|
| Instant Off | Yes | |
| Direct Power On | Yes | |
| Auto Power On | Yes | |
| Security | Padlock & Security Cable Hole Kensington® lock provision Wireless LAN Unit Lock Password protection |
|
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard | |
| Wall Mount | Optional (ELPMB62) | |
| GENERAL | ||
| Dimensions (excl feet) WxDxH | 395 x 357 x 165 mm | |
| Weight | 6kg | |
| Projector Warranty | 3 Years | |
| Power Consumption: Projector on | 263 W | |
| Power Consumption: Standby | 2 W | |
| Noise Level (Normal / Eco) | 37 / 27 dB | |
| WHAT'S IN THE BOX | ||
| Main Unit | EB-760Wi Projector | |
| Power Cable | 1.8 m | |
| USB Cable | 5 m | |
| Remote Control | Yes | |
| Battery for Remote Control | 2 x AA | |
| Easy Interactive Pen | 2 Pens | |
| Battery for Easy Interactive Pen | 2 x AA | |
| Pen Stand | Yes | |
| Pen tip (Soft) | x4 | |
| Pen tip (Hard) | x2 | |
| Corner markers for auto setup | Yes | |
| PRODUCT OPTIONS | ||
| V13H134A60 | Air Filter – ELPAF60 | |
| V12HA06A06 | Projector wall mount – ELPMB62 | |
| V12H007A24 | Finger Touch Unit (FTU) – ELPFT01 | |
| V12HA05A09 | FTU wall mount - ELPMB63 | |
| V12H773010 | Pen – ELPPN05A | |
| V12H774010 | Pen - ELPPN05B | |
| V12H775010 | Hard Pen Tip – ELPPS03 | |
| V12H776010 | Soft Pen Tip – ELPPS04 | |
| V12H467053 | External speakers ELPSP02 | |
| V12H731P01 | Document Camera ELPDC21 | |
| V12H005A01 | Wireless LAN Unit ELPAP11 | |
| V12H003B23 | Projector ceiling mount - ELPMB23 | |
- Stylus Pen Interactive Projector with Optional Finger Touch
- Laser Ultra Short Throw
- 4,100 Lumens Colour & White Brightness
- WXGA Resolution [1280x800]
- 16:10 Native Aspect Ratio
- 1.35:1 Digital Zoom
- Screen Size: 60" to 150"
- 89" Screen Size on 1200mm high whiteboard
- PC Free Whiteboard Function With up to 20 Pages of Storage
- Save, Print and Send
- Multi-PC Projection with Moderator Control: Display up to 4 Devices and Queue up to 50 Participants
- Sliding split screen
- Integrated Wifi
- Miracast (Screen Sharing)
- Epson iProjection
- HDMI Connectivity x 3
- VGA Connectivity x 2
- RS232C Control
- RJ45 LAN
- Video Out (VGA)
- Audio Out (Stereo mini)
- Optional Wall Mount [ELPMB62]
- Optional Finger Touch Unit [ELPFT01]
- Optional Finger Touch Wall Bracket [ELPMB63]
- Optional Control Box [ELPCB03]
- Optional Epson 30W Stereo Speaker Set [ELPSP02]
- 16W Speaker (Stereo)
- 6Kg
- 3 Years Warranty (4 Years Under NSW Multimedia C278)
- $3,999 RRP Inc GST
- Epson Product Code: V11HA80053
Epson EB-770Fi
[1080p] USTi Laser Interactive Projector
4,100 Lumen
1080p Resolution [1920x1080]
1080p Resolution [1920x1080]
$4,299 RRP Inc GST
Epson Product Code: V11HA78053
Epson Product Code: V11HA78053
| PRODUCT NAME | EB-770Fi | |
| PRODUCT CODE | V11HA78053 | |
| TECHNOLOGY | ||
|---|---|---|
| Projection System | RGB liquid crystal shutter projection system | |
| LCD Panel | 0.62-inch (C2fine) | |
| Resolution | 1080p | |
| OPTICAL | ||
| Zoom | 1 – 1.35 (Digital) | |
| Screen Size | 65" to 150" [32.5 cm to 89.3 cm] @16:9 | |
| Projection Distance | 77" screen at 43.3 cm |
|
| Throw Ratio | 0.25 (Zoom:Wide) 0.35 (Zoom:Tele) |
|
| Projection Lens F Number | 1.6 | |
| Projection Lens Focal Length | 3.7 mm | |
| Focus Method | Manual | |
| Offset | 5.2 : -1 | |
| IMAGE | ||
| Colour Light Output | 4,100 lumens | |
| White Light Output | 4,100 lumens | |
| Native Aspect Ratio | 16:9 | |
| Contrast Ratio | Over 2,500,000:1 | |
| Light Source | Laser diode | |
| Colour Reproduction | Up to 1.07 billion colours | |
| Colour Processing | 10 bit | |
| Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
|
| Quick Corner | Yes | |
| Auto Setup | Yes | |
| Refresh Rate | 192 Hz / 240 Hz | |
| CONNECTIVITY | ||
| Video I/O - Input | 2x RGB D-sub 15pin 1x RCA Composite |
|
| Video I/O - Output | 1x RGB D-sub 15pin (shared) | |
| Digital Input | 3x HDMI | |
| Digital Output | N/A | |
| Audio I/O - Input | 3x Stereo mini 1 x Mic-In Stereo Mini |
|
| Audio I/O - Output | 1x Stereo mini | |
| Control I/O | 1 x RS232C (D-sub 9 pin) Interactive sync Stereo Mini - 1 x In, 1 x Out Touch Unit Control - Mini DIN 8pin |
|
| USB I/O | 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1) 2 x Type B (Firmware update, Copy OSD Settings, USB display) |
|
| Network I/O: | 1 x RJ45 (100Mbps) Wired LAN | |
| Touch Interactive | Min DIN 8pin | |
| Wireless Connectivity | Built-in Miracast and Built-in Wireless Optional Wireless LAN unit (ELPAP11)* *With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode). |
|
| Speaker Output | 1 x 16 W Stereo | |
| ADVANCED FEATURES | ||
| Epson Projection Management Software | Yes | |
| Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol | |
| Easy Interactive Tools | Ver 5.00 (Windows) Ver 5.01 (Mac OS) |
|
| PC Interactive Tool | Multiple pen: Yes (up to 2) with Easy Interactive Tools Finger touch support: Optional (up to 6 fingers) |
|
| PC Free Annotation Tool | Multiple pen support: Yes (up to 2) Finger touch support: Optional (Up to 6) Whiteboard function (Pen up to 2, optional: up to 6) Projector operation |
|
| Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
|
| Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
|
| Wireless LAN Security | WPA2/WPA3-PSK (Personal), WPA2/WPA3-EAP (Enterprise) |
|
| Instant Off | Yes | |
| Direct Power On | Yes | |
| Auto Power On | Yes | |
| Security | Padlock & Security Cable Hole Kensington® lock provision Wireless LAN Unit Lock Password protection |
|
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard | |
| Wall Mount | Optional (ELPMB62) | |
| GENERAL | ||
| Dimensions (excl feet) WxDxH | 395 x 357 x 165 mm | |
| Weight | 6kg | |
| Projector Warranty | 3 Years | |
| Power Consumption: Projector on | 263 W | |
| Power Consumption: Standby | 2 W | |
| Noise Level (Normal / Eco) | 37 / 27 dB | |
| WHAT'S IN THE BOX | ||
| Main Unit | EB-770Fi Projector | |
| Power Cable | 1.8 m | |
| USB Cable | 5 m | |
| Remote Control | Yes | |
| Battery for Remote Control | 2 x AA | |
| Easy Interactive Pen | 2 Pens | |
| Battery for Easy Interactive Pen | 2 x AA | |
| Pen Stand | Yes | |
| Pen tip (Soft) | x4 | |
| Pen tip (Hard) | x2 | |
| Corner markers for auto setup | Yes | |
| PRODUCT OPTIONS | ||
| V13H134A60 | Air Filter – ELPAF60 | |
| V12HA06A06 | Projector wall mount – ELPMB62 | |
| V12H007A24 | Finger Touch Unit (FTU) – ELPFT01 | |
| V12HA05A09 | FTU wall mount - ELPMB63 | |
| V12H773010 | Pen – ELPPN05A | |
| V12H774010 | Pen - ELPPN05B | |
| V12H775010 | Hard Pen Tip – ELPPS03 | |
| V12H776010 | Soft Pen Tip – ELPPS04 | |
| V12H467053 | External speakers ELPSP02 | |
| V12H731P01 | Document Camera ELPDC21 | |
| V12H005A01 | Wireless LAN Unit ELPAP11 | |
- Stylus Pen Interactive Projector with Optional Finger Touch
- Laser Ultra Short Throw
- 4,100 Lumens Colour & White Brightness
- 1080p Resolution [1920x1080]
- 16:9 Native Aspect Ratio
- 1.35:1 Digital Zoom
- Screen Size: 60" to 150"
- 96" Screen Size on 1200mm high whiteboard
- PC Free Whiteboard Function With up to 20 Pages of Storage
- Save, Print and Send
- Multi-PC Projection with Moderator Control: Display up to 4 Devices and Queue up to 50 Participants
- Sliding split screen
- Integrated Wifi
- Miracast (Screen Sharing)
- Epson iProjection
- HDMI Connectivity x 3
- VGA Connectivity x 2
- RS232C Control
- RJ45 LAN
- Video Out (VGA)
- Audio Out (Stereo mini)
- Optional Wall Mount [ELPMB62]
- Optional Finger Touch Unit [ELPFT01]
- Optional Finger Touch Wall Bracket [ELPMB63]
- Optional Control Box [ELPCB03]
- Optional Epson 30W Stereo Speaker Set [ELPSP02]
- 16W Speaker (Stereo)
- 6Kg
- 3 Years Warranty (4 Years Under NSW Multimedia C278)
- $4,299 RRP Inc GST
- Epson Product Code: V11HA78053
Epson EB-1480Fi MeetingMate
[1080p] USTi Laser Interactive Projector
5,000 Lumen
1080p Resolution [1920x1080]
1080p Resolution [1920x1080]
$4,799 RRP Inc GST
Epson Product Code: V11H921553
Epson Product Code: V11H921553
| PRODUCT NAME | MeetingMate EB-1480Fi | |
| PRODUCT CODE | V11H921553 | |
| TECHNOLOGY | ||
|---|---|---|
| Projection Technology | Epson 3LCD, 3-chip technology | |
| Light Source | Laser Diode | |
| Projection System | RGB liquid crystal shutter projection system | |
| LCD Panel | 0.62-inch (C2fine) | |
| OPTICAL | ||
| Zoom Ratio | 1.0 - 1.35 (Digital Zoom) | |
| Screen Size | 65" to 100" [39.2cm to 61.3cm] @16:9 | |
| Projection Distance | Standard size: 80" screen 48.7cm | |
| Throw Ratio | 0.27 (Zoom:Wide) 0.37 (Zoom:Tele) |
|
| Projection Lens Type | No Optical Zoom / Focus (Manual) | |
| Projection Lens F Number | 1.5 | |
| Projection Lens Focal Length | 3.9 mm | |
| Focus Method | Manual | |
| Offset | 8.68:-1 | |
| IMAGE | ||
| White Light Output | 5,000 lumens | |
| Colour Light Output | 5,000 lumens | |
| Resolution | FHD* | |
| Native Aspect Ratio | 16:9 | |
| Contrast Ratio | Over 2,500,000:1 | |
| Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
|
| Quick Corner | Yes | |
| Auto Set Up | Yes | |
| Split Screen | Yes | |
| Edge Blending | N/A | |
| Colour Reproduction | Up to 1.07 billion colours | |
| Colour Processing | 10 bit | |
| *Pixel shifting technology achieves Full HD resolution on screen | ||

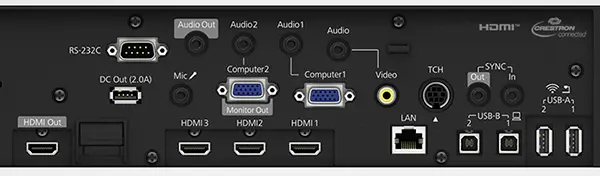

| CONNECTIVITY | ||
| Video I/O - Input | 2x RGB D-sub 15pin 1x RCA Composite |
|
| Video I/O - Output | 1x RGB D-sub 15pin (shared) | |
| Digital Input | 3x HDMI | |
| Digital Output | 1x HDMI | |
| Audio I/O - Input | 3x Stereo mini 1x Mic-In Stereo Mini |
|
| Audio I/O - Output | 1x Stereo mini | |
| Control I/O | 1x RS232C (D-sub 9 pin) Interactive sync Stereo Mini - 1x In, 1x Out Touch Unit Control - Mini DIN 8pin |
|
| USB I/O | 2x Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD Settings) 1x TypeA DC Out (2.0A) 2x Type B (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, copy OSD settings) |
|
| Network I/O: | 1x RJ45 (100Mbps) Wired LAN | |
| Touch Interactive | Min DIN 8pin | |
| Wireless Connectivity | Built-in Miracast and Built-in Wireless Optional Wireless LAN unit (ELPAP11)* *With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode). |
|
| Speaker Output | 2 x 8 W Stereo | |
| ADVANCED FEATURES | ||
| Epson Projection Management Software | Yes | |
| Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link AMX Device Discovery, Control4 Simple Device Discovery Protocol |
|
| Message Broadcasting | Yes | |
| Easy Interactive Tools | Ver 5.00 (Windows/Mac OS) | |
| Finger Interactive Unit | Dimension: 422 x 40 x 65mm (WxHxD) Weight: 600g Technology: Infrared Laser (Class 1) Adjustment: Auto Control I/O: 1 x Mini DIN 8pin Security: Kensington® - lock provision |
|
| PC Interactive Tool | Multiple pen: Yes (up to 2) with Easy Interactive Tools Finger touch support: Optional (up to 6 fingers) |
|
| PC Free Annotation Tool | Multi-pen support: Yes (up to 2) Finger touch support: Up to 6 Whiteboard function: (Pen up to 2, optional: up to 6) Projector operation |
|
| Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | |
| Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | |
| Wireless LAN Security | WPA2/WPA3-PSK, WPA2/WPA3-EAP | |
| Instant Off | Yes | |
| Direct Power On | Yes | |
| Auto Power On | Yes (HDMI1, Computer 1, USB Display) | |
| Security | Padlock & Security Cable Hole Kensington® lock provision Wireless LAN Unit Lock Password protection |
|
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard, DICOM SIM, Multi-Projection | |
| Wall Mount | Optional (ELPMB62) | |
| EXTERNAL CONTROL PAD | ||
| Dimensions WxDxH | 174 x 36.5 x 201.8mm | |
| Weight | 0.6 kg | |
| Buttons | Power, HDMI 1, HDMI 2 | |
| Input | 1 x USB Type A (Pass through for USB Document Camera, PC Free, Memory) 2 x USB Type B (for interactive) 2 x HDMI |
|
| Output | 1 x USB Type B | |
| GENERAL | ||
| Dimensions (excl feet) WxHxD | 458 x 209.5 x 375 mm | |
| Weight | Approx. 9.7 Kg | |
| Projector Warranty | 3 Years | |
| Power Consumption | 366 W (Normal) 262 W (Quiet) |
|
| Fan Noise Level | 36 dB (Normal) 27 dB (Quiet) |
|
| WHAT'S IN THE BOX | ||
| Main Unit | EB-1480Fi Projector | |
| Power Cable | 1.8 m | |
| USB Cable Cable | 1.8 m | |
| Remote Control | Yes | |
| Battery for Remote Control | 2 x AA | |
| Easy Interactive Pen | 2 Pens | |
| Battery for Easy Interactive Pen | 2 x AA | |
| Pen Stand | Yes | |
| Pen Tip (Soft) | x 4 | |
| Pen Tip (Hard) | x 2 | |
| Pen Tip Holder | Yes | |
| Corner markers for auto setup | Yes | |
| PRODUCT OPTIONS | ||
| V13H134A56 | Air Filter – ELPAF56 | |
| V12HA06A06 | Projector wall mount – ELPMB62 | |
| V12H007A24 | Finger Touch Unit (FTU) – ELPFT01 | |
| V12HA05A09 | FTU wall mount - ELPMB63 | |
| V12H773010 | Pen – ELPPN05A | |
| V12H774010 | Pen - ELPPN05B | |
| V12H775010 | Hard Pen Tip – ELPPS03 | |
| V12H776010 | Soft Pen Tip – ELPPS04 | |
| V12H467053 | External speakers ELPSP02 | |
| V12H731P01 | Document Camera ELPDC21 | |
| V12H005A01 | Wireless LAN Unit ELPAP11 | |
- Interactive Stylus Pen & Finger Touch USTi Projector
- Laser Ultra Short Throw
- 5,000 Lumens Colour & White Brightness
- 1080p Resolution [1920x1080]
- 1.35:1 Digital Zoom
- 16:9 Native Aspect Ratio
- Max Screen Size: 100"
- 80" Screen at only 49cm
- 96" Screen Size on 1200mm high whiteboard at only 52cm
- Optional Finger Touch Interactivity [ELPFT01]
- Touch based interactivity - up to 6 users
- PC Free Whiteboard Function With up to 20 Pages of Storage
- Multi-PC Projection with Moderator Control: Display up to 4 Devices and Queue up to 50 Participants
- Network: Monitor / Control / Projection / Interactivity
- PC Free Annotation
- Whiteboard Sharing with up to 15 Devices
- HDMI connectivity x 3
- HDBaseT
- RS232C Control
- RJ45 LAN
- Video Out (HDMI & VGA)
- Audio Out (Stereo Mini)
- Save, Print and Send
- Quick Corner
- Sliding Split Screen
- Output Images to Video-Conferencing Systems
- Integrated Wifi
- Miracast (Screen Sharing)
- Optional Wall Mount [ELPMB62]
- Optional Finger Touch Unit [ELPFT01]
- Optional Finger Touch Wall Bracket [ELPMB63]
- 9.7Kg
- 3 Years Warranty (4 Years Under NSW Multimedia C278)
- $4,799 RRP Inc GST
- Epson Product Code: V11H921553
- Refer NSW EdBuy C278 Catalogue [IPREP1480UIKI]
Epson EB-1485Fi MeetingMate
[1080p] USTi Laser Interactive Projector
5,000 Lumen
1080p Resolution [1920x1080]
1080p Resolution [1920x1080]
$5,599 RRP Inc GST
Epson Product Code: V11H919053
Epson Product Code: V11H919053
| PRODUCT NAME | MeetingMate EB-1485Fi | |
| PRODUCT CODE | V11H919053 | |
| TECHNOLOGY | ||
|---|---|---|
| Projection Technology | Epson 3LCD, 3-chip technology | |
| Light Source | Laser Diode | |
| Projection System | RGB liquid crystal shutter projection system | |
| LCD Panel | 0.62-inch (C2fine) | |
| OPTICAL | ||
| Zoom Ratio | 1.0 - 1.35 (Digital Zoom) | |
| Screen Size | 65" to 100" [39.2cm to 61.3cm] @16:9 61" to 120" [39.5cm to 79.6cm] @16:6 |
|
| Projection Distance | Standard size: 80" screen 48.7cm | |
| Throw Ratio | 0.27 (Zoom:Wide) 0.37 (Zoom:Tele) |
|
| Projection Lens Type | No Optical Zoom / Focus (Manual) | |
| Projection Lens F Number | 1.5 | |
| Projection Lens Focal Length | 3.9 mm | |
| Focus Method | Manual | |
| Offset | 8.68:-1 | |
| IMAGE | ||
| White Light Output | 5,000 lumens | |
| Colour Light Output | 5,000 lumens | |
| Resolution | FHD* | |
| Native Aspect Ratio | 16:9 | |
| Contrast Ratio | Over 2,500,000:1 | |
| Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
|
| Quick Corner | Yes | |
| Auto Set Up | Yes | |
| Split Screen | Yes | |
| Edge Blending | Yes | |
| Colour Reproduction | Up to 1.07 billion colours | |
| Colour Processing | 10 bit | |
| *Pixel shifting technology achieves Full HD resolution on screen | ||

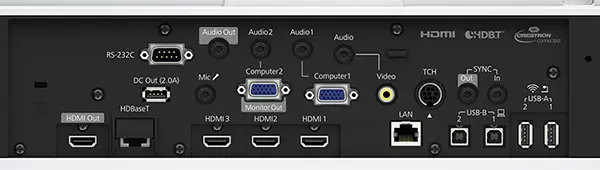

| CONNECTIVITY | ||
| Video I/O - Input | 2x RGB D-sub 15pin 1x RCA Composite |
|
| Video I/O - Output | 1x RGB D-sub 15pin (shared) | |
| Digital Input | 3x HDMI 1x HDBaseT |
|
| Digital Output | 1x HDMI | |
| Audio I/O - Input | 3x Stereo mini 1x Mic-In Stereo Mini |
|
| Audio I/O - Output | 1x Stereo mini | |
| Control I/O | 1x RS232C (D-sub 9 pin) Interactive sync Stereo Mini - 1x In, 1x Out Touch Unit Control - Mini DIN 8pin |
|
| USB I/O | 2x Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD Settings) 1x TypeA DC Out (2.0A) 2x Type B (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, copy OSD settings) |
|
| Network I/O: | 1x RJ45 (100Mbps) Wired LAN | |
| Touch Interactive | Min DIN 8pin | |
| Wireless Connectivity | Built-in Miracast and Built-in Wireless Optional Wireless LAN unit (ELPAP11)* *With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode). |
|
| Speaker Output | 2 x 8 W Stereo | |
| ADVANCED FEATURES | ||
| Epson Projection Management Software | Yes | |
| Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link AMX Device Discovery, Control4 Simple Device Discovery Protocol |
|
| Message Broadcasting | Yes | |
| Easy Interactive Tools | Ver 5.00 (Windows/Mac OS) | |
| Finger Interactive Unit | Dimension: 422 x 40 x 65mm (WxHxD) Weight: 600g Technology: Infrared Laser (Class 1) Adjustment: Auto Control I/O: 1 x Mini DIN 8pin Security: Kensington® - lock provision |
|
| PC Interactive Tool | Multiple pen/finger support: Yes (with Easy Interactive Tools) Easy Interactive Pen: Up to 2. Finger: Up to 6. |
|
| PC Free Annotation Tool | Multi-pen support: Yes Easy Interactive Pen: Up to 2 Finger: Up to 6 Whiteboard function: (Pen up to 2, optional: up to 6) Projector operation |
|
| Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | |
| Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | |
| Wireless LAN Security | WPA2/WPA3-PSK, WPA2/WPA3-EAP | |
| Instant Off | Yes | |
| Direct Power On | Yes | |
| Auto Power On | Yes (HDMI1, Computer 1, USB Display) | |
| Security | Padlock & Security Cable Hole Kensington® lock provision Wireless LAN Unit Lock Password protection |
|
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard, DICOM SIM, Multi-Projection | |
| Wall Mount | Included (ELPMB62) | |
| EXTERNAL CONTROL PAD | ||
| Dimensions WxDxH | 174 x 36.5 x 201.8mm | |
| Weight | 0.6 kg | |
| Buttons | Power, HDMI 1, HDMI 2 | |
| Input | 1 x USB Type A (Pass through for USB Document Camera, PC Free, Memory) 2 x USB Type B (for interactive) 2 x HDMI |
|
| Output | 1 x USB Type B 1 x HDBaseT (RJ-45) |
|
| GENERAL | ||
| Dimensions (excl feet) WxDxH | 458 x 209.5 x 375 mm | |
| Weight | Approx. 9.7 Kg | |
| Projector Warranty | 3 Years | |
| Power Consumption | 366 W (Normal) 262 W (Quiet) |
|
| Fan Noise Level | 36 dB (Normal) 27 dB (Quiet) |
|
| WHAT'S IN THE BOX | ||
| Main Unit | EB-1485Fi Projector | |
| Control Pad | Yes | |
| Power Cable | 1.8 m | |
| USB Cable Cable | 1.8 m | |
| Remote Control | Yes | |
| Battery for Remote Control | 2 x AA | |
| Wall Mount | ELPMB62 | |
| Easy Interactive Pen | 2 Pens | |
| Battery for Easy Interactive Pen | 2 x AA | |
| Pen Stand | Yes | |
| Pen Tip (Soft) | x 4 | |
| Pen Tip (Hard) | x 2 | |
| Pen Tip Holder | Yes | |
| Light Curtain Finger Touch Unit | Yes - excludes wall mount | |
| Corner markers for auto setup | Yes | |
| PRODUCT OPTIONS | ||
| V13H134A56 | Air Filter – ELPAF56 | |
| V12HA05A09 | FTU wall mount - ELPMB63 | |
| V12H773010 | Pen – ELPPN05A | |
| V12H774010 | Pen - ELPPN05B | |
| V12H775010 | Hard Pen Tip – ELPPS03 | |
| V12H776010 | Soft Pen Tip – ELPPS04 | |
| V12H467053 | External speakers ELPSP02 | |
| V12H731P01 | Document Camera ELPDC21 | |
| V12H005A01 | Wireless LAN Unit ELPAP11 | |
- Stylus Pen & Finger Touch Interactive USTi Projector
- Laser Ultra Short Throw
- 5,000 Lumens Colour & White Brightness
- 1080p Resolution [1920x1080]
- 16:9 & 16:6 Native Aspect Ratios
- Max Screen Size: 100"
- 80" Screen at only 49cm
- 96" Screen Size on 1200mm high whiteboard at only 52cm
- Interactive – Both Stylus Pen & Finger Touch
- 2x Stylus Pen plus 6x Finger Touch Simultaneously
- Intuitive Control Pad for Easy Operation
- Touch based interactivity - up to 6 users
- PC Free Whiteboard Function With up to 20 Pages of Storage
- Multi-PC Projection with Moderator Control: Display up to 4 Devices and Queue up to 50 Participants
- Network: Monitor / Control / Projection / Interactivity
- PC Free Annotation
- Whiteboard Sharing with up to 15 Devices
- HDMI connectivity x 3
- HDBaseT
- RS232C Control
- RJ45 LAN
- Video Out (HDMI & VGA)
- Audio Out (Stereo Mini)
- Save, Print and Send
- Quick Corner
- Edge Blending [155" Image]
- Sliding Split Screen
- Integrated Wall Mount Included
- Output Images to Video-Conferencing Systems
- Integrated Wifi
- Miracast (Screen Sharing)
- Optional Finger Touch Wall Bracket [ELPMB63]
- 9.7Kg
- 3 Years Warranty (4 Years Under NSW Multimedia C278)
- $5,599 RRP Inc GST
- Epson Product Code: V11H919053
- Refer NSW EdBuy C278 Catalogue [IPREP1485UIKI]
